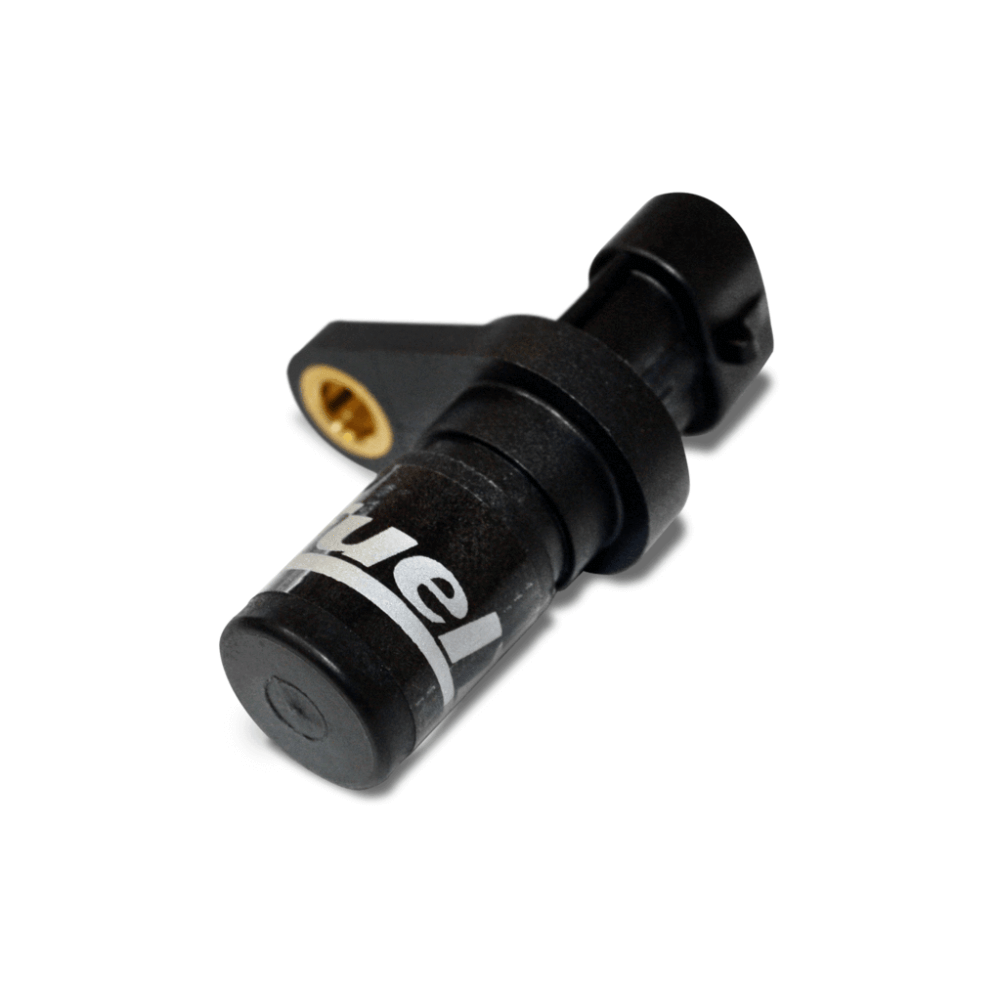

HALL EFFECT RPM/SPEED SENSOR

The sensor is Hall effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking output current.

Features:

- From near zero speed um to 15 kHz sensing capability

- Plastic flange-mount housing

- Compatible with unregulated power supply

- IP67

- Typical air gap of 1.5 mm

Pinout

A - VCC (5-32V)

B - Signal

C - GND
