Damanfer 1JZ/2JZ MT Harness + Haltech Nexus S3 + 02 Sensor COMBO!

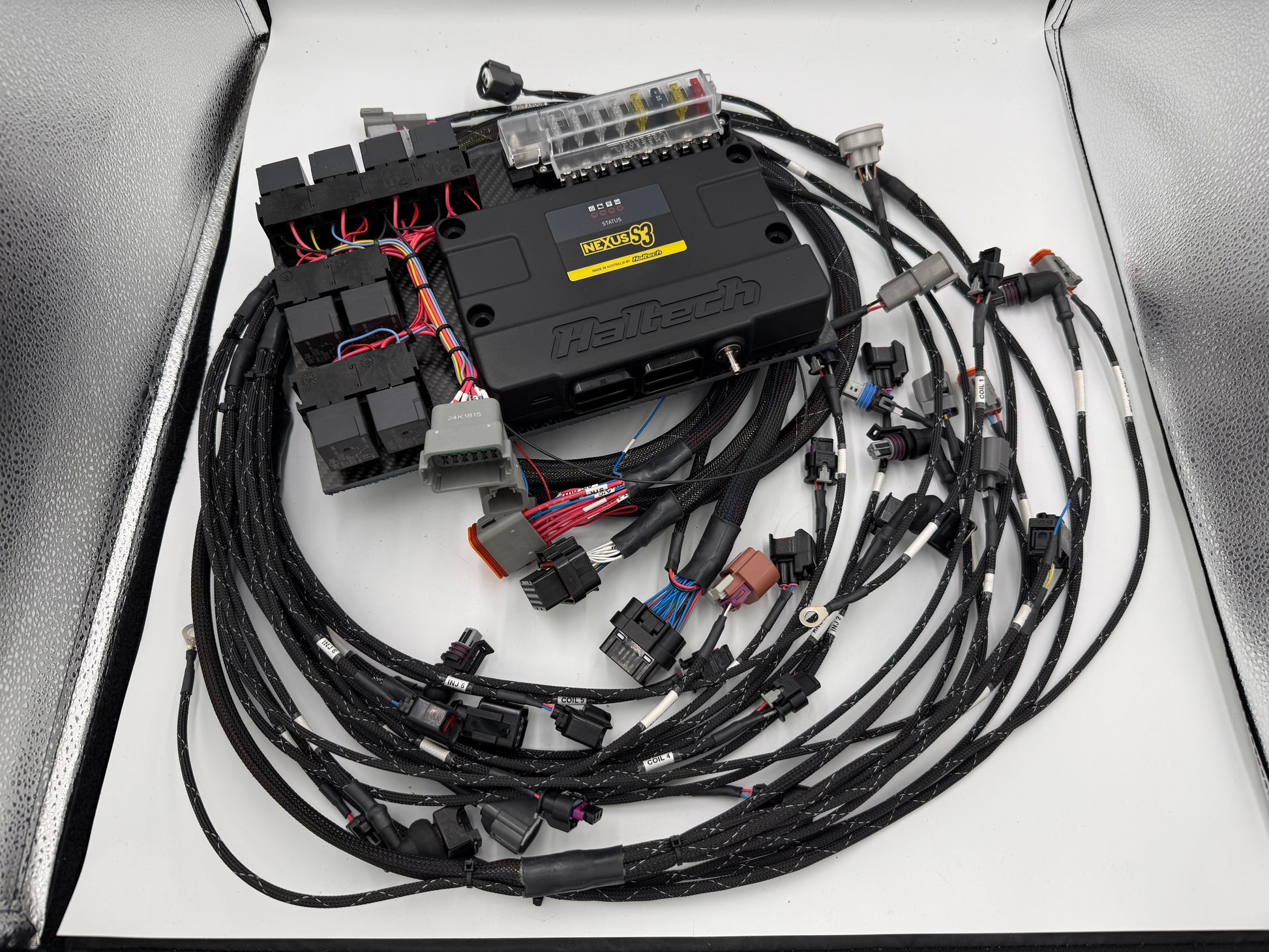

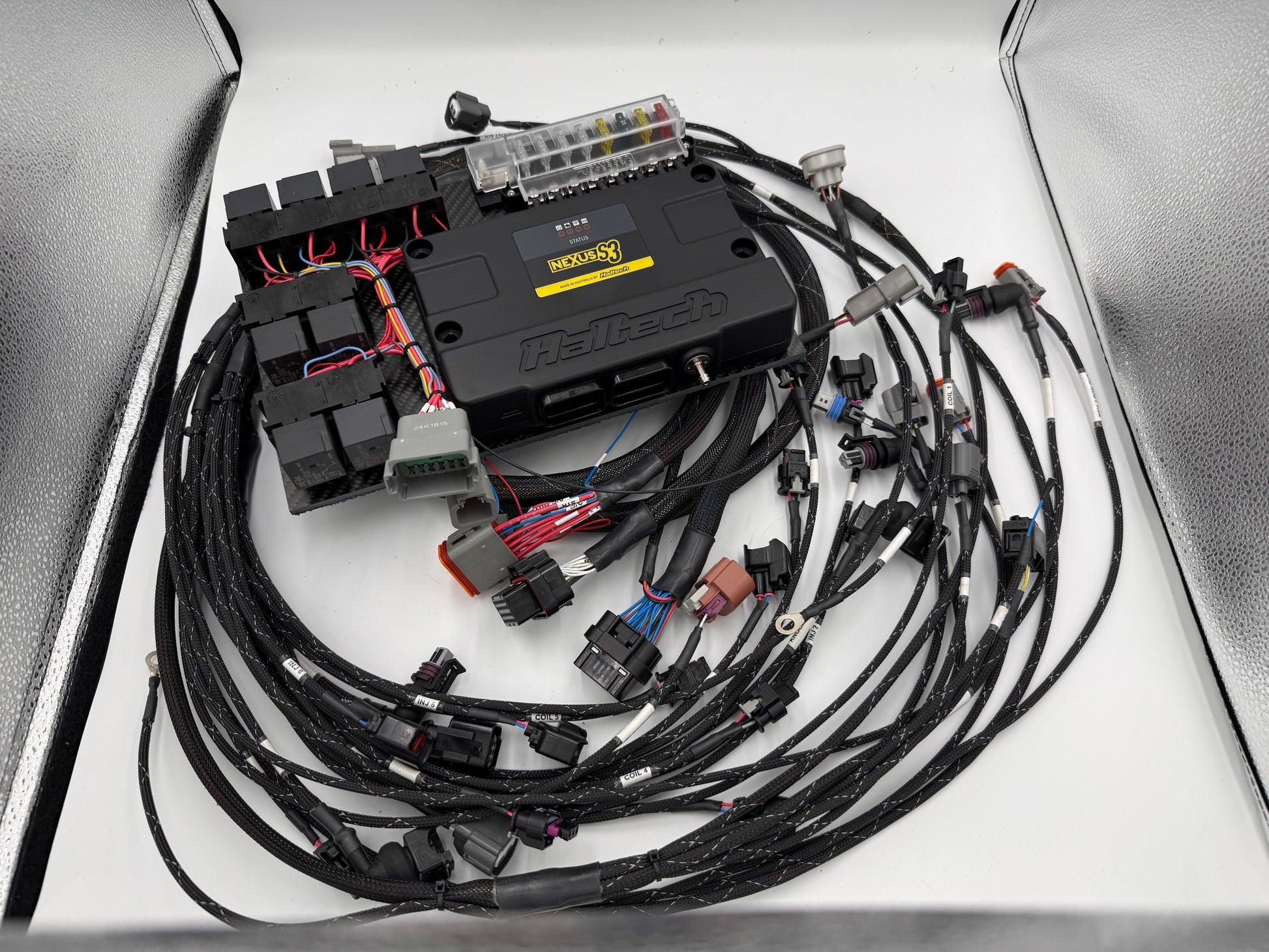

1JZ/2JZ MT Engine Harness + Haltech Nexus S3 + 02 Sensor COMBO!

Compatible in most front mount engine rear wheel drive vehicles, this 1JZ/2JZ Nexus S3 engine harness meets the needs of most.

Built with Mil-Spec ETFE Insulated Electric Wire (Tefzel wire) we strive to offer top quality harnesses.

Inputs:

1. TPS
2. Engine Coolant Temp. (ECT)
3. Oil Pressure
4. Fuel Pressure
5. Flex Fuel
6. AIT

7. RW Speed

8. A/C Switch

Outputs besides injectors and coils:

1. Boost Solenoid
2. A/C Compressor
3. Radiator Fan
4. Fuel Pump #1
5. Fuel Pump #2

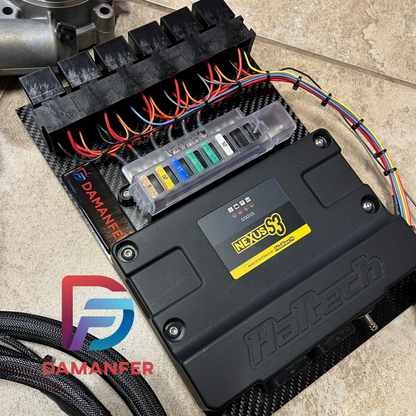

Included with wiring harness is a fuse and relay panel with 5 fuses and relays as follows:

1. ECU
2. Injectors
3. Coils
4. A/C
5. Starter

Harness is set up to having to connect 12v switch, starter signal, A/C switch signal, battery ground, and outputs to stock relays for radiator fans and fuel pump (for ECU control). You also have leads to splice your RPM, speed and check engine light.

That is all it takes to get you ready for tuning.

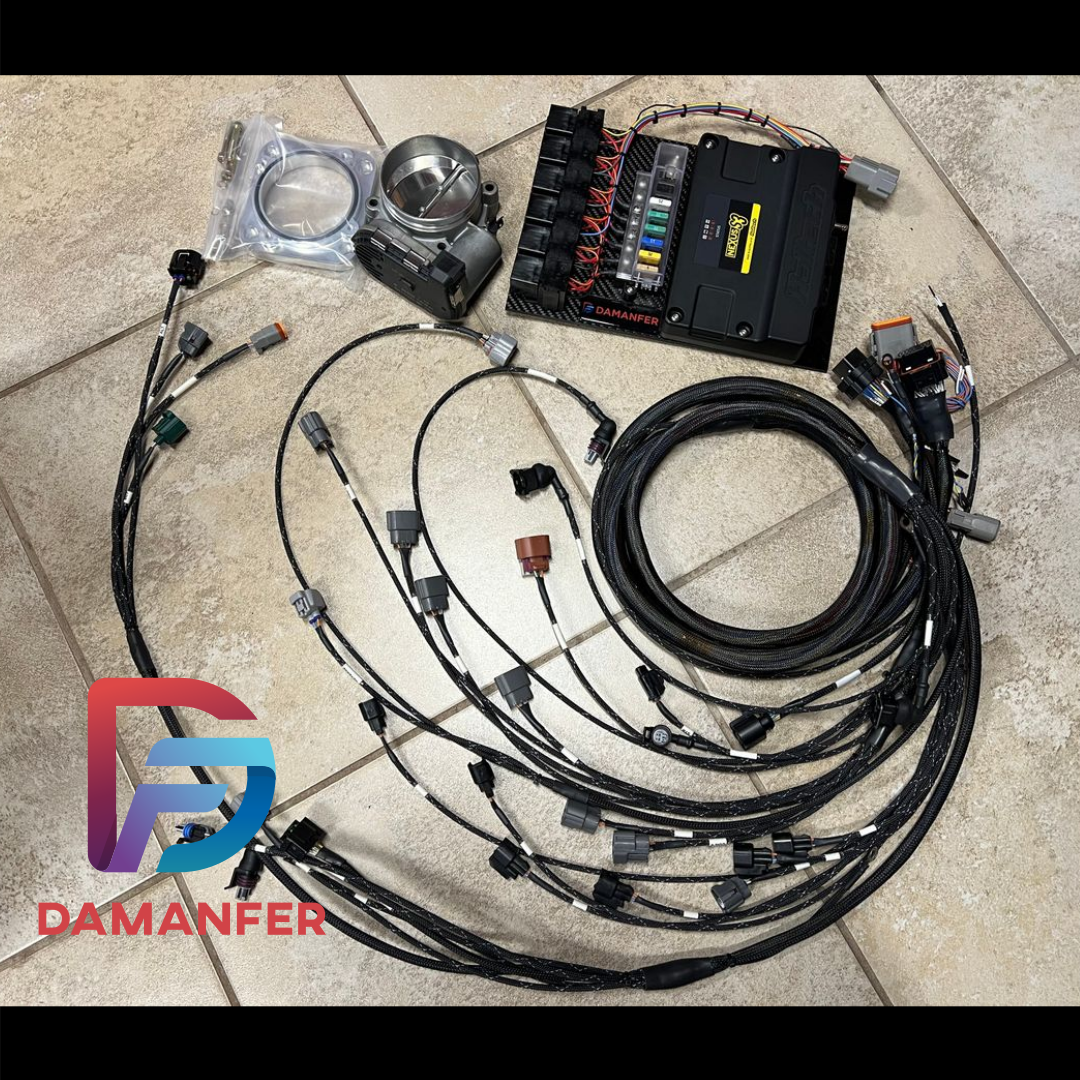

Combo includes:

1. Damanfer 1JZ/2JZ Engine Harness
2. Haltech Nexus S3
3. Bosch 02 Sensor
4. Damanfer CNC Billet Firewall Plate

Option available to add DBW wiring at no extra cost.

Please select injectors and coils used on set up to have correct connectors on harness.
