MR2 K-Series MT + Fueltech FT550 Combo!

DAMANFER MR2 K-Series MT + Fueltech FT550 Combo!

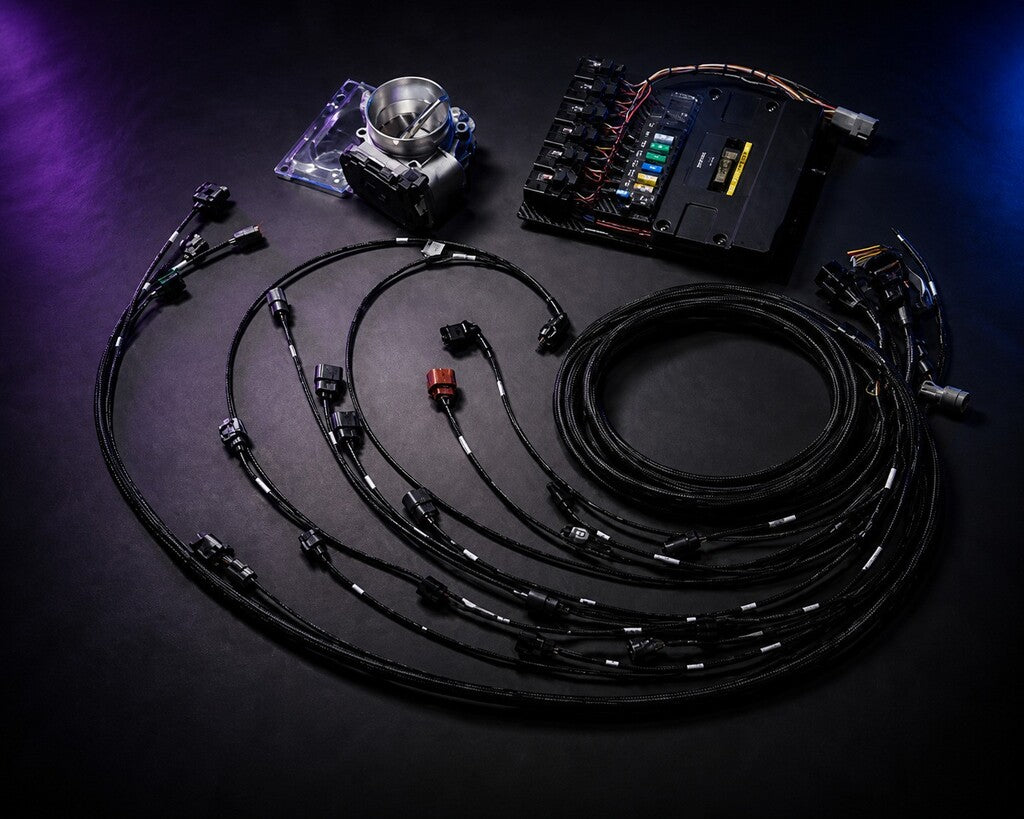

Compatible in MR2 and similar vehicles, this MR2 K-Series Fueltech FT550 engine harness meets the needs of most.

Built with Mil-Spec ETFE Insulated Electric Wire (Tefzel wire) we strive to offer top quality harnesses.

Inputs:

1. TPS
2. Engine Coolant Temp. (ECT)
3. Oil Pressure
4. Fuel Pressure
5. Flex Fuel
6. RW Speed
7. Ride Height
8. FW Speed
9. ECP (Engine Coolant Pressure)


Outputs besides Injectors and coils:

1. Boost Solenoid

2. Vtec
3. VTC
4. Radiator Fans
5. Fuel Pump

Included with wiring harness is a fuse and relay box with 5 fuses and relays as fallows:

1. ECU
2. Injectors
3. Coils
4. A/C
5. Starter

Harness is set up to having to connect 12v switch, starter signal, A/C switch signal, battery ground, and outputs to stock relays for radiator fans and fuel pump (for ECU control).

That is all it takes to get you ready for tuning.

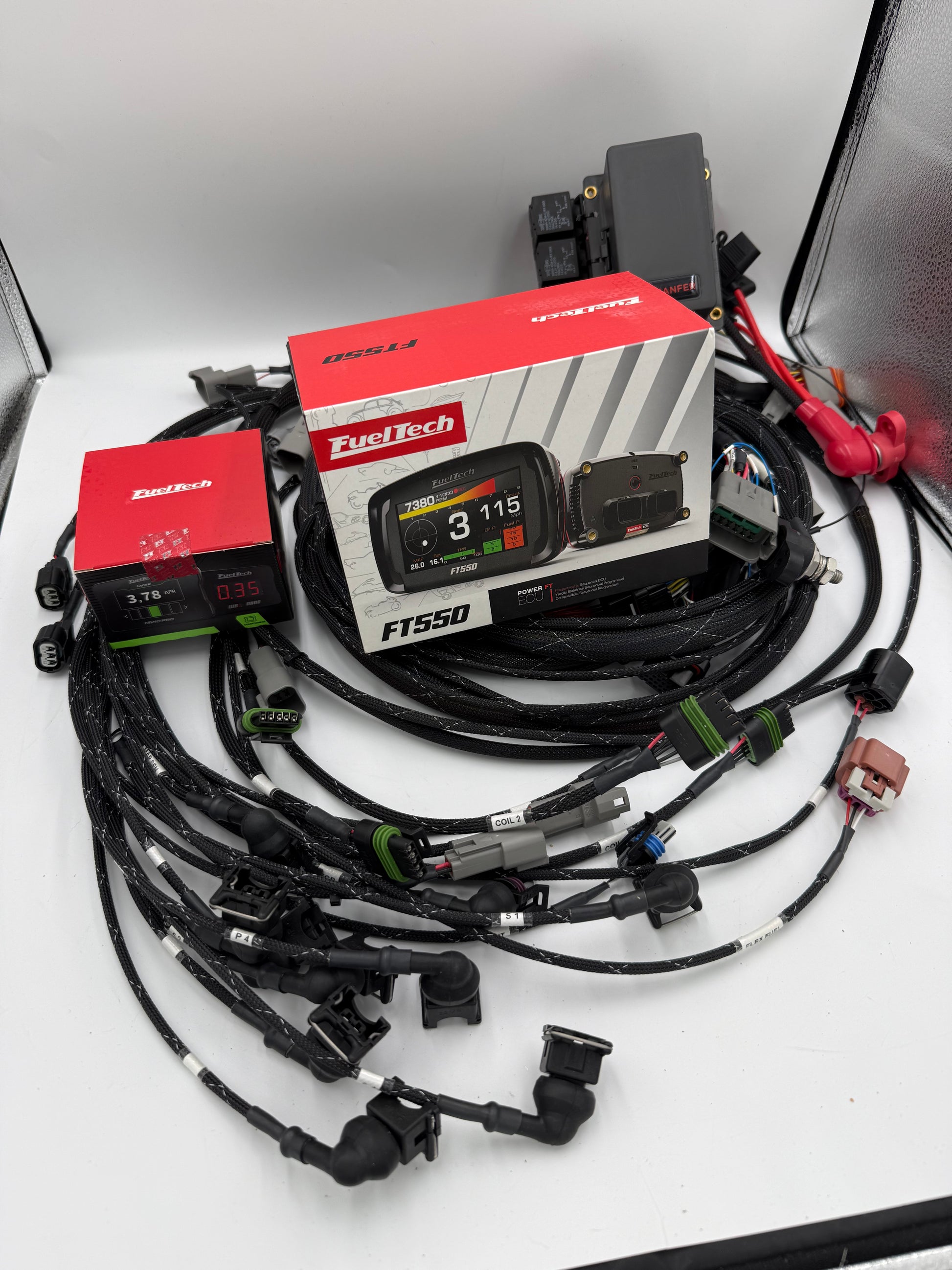

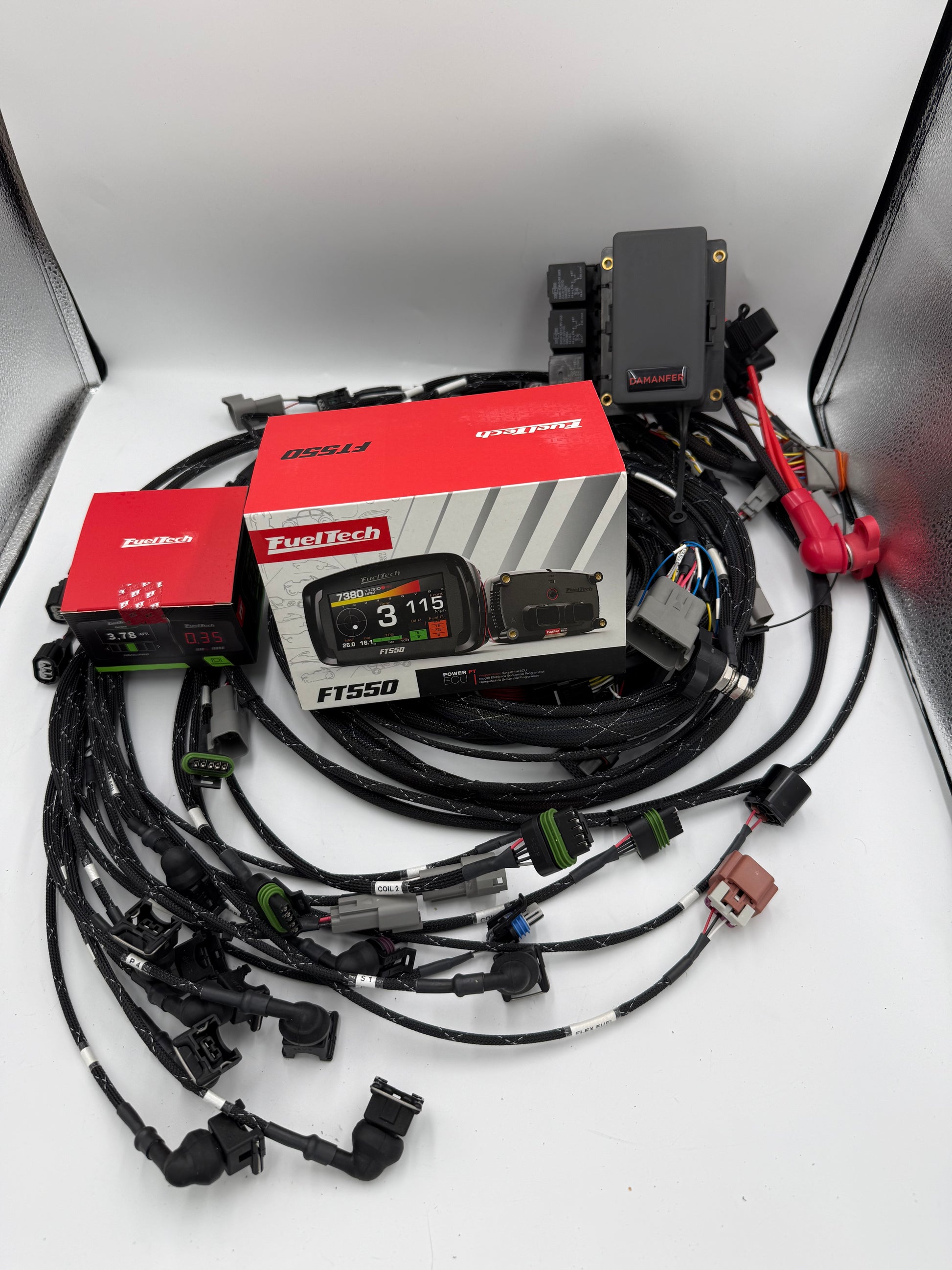

Includes:

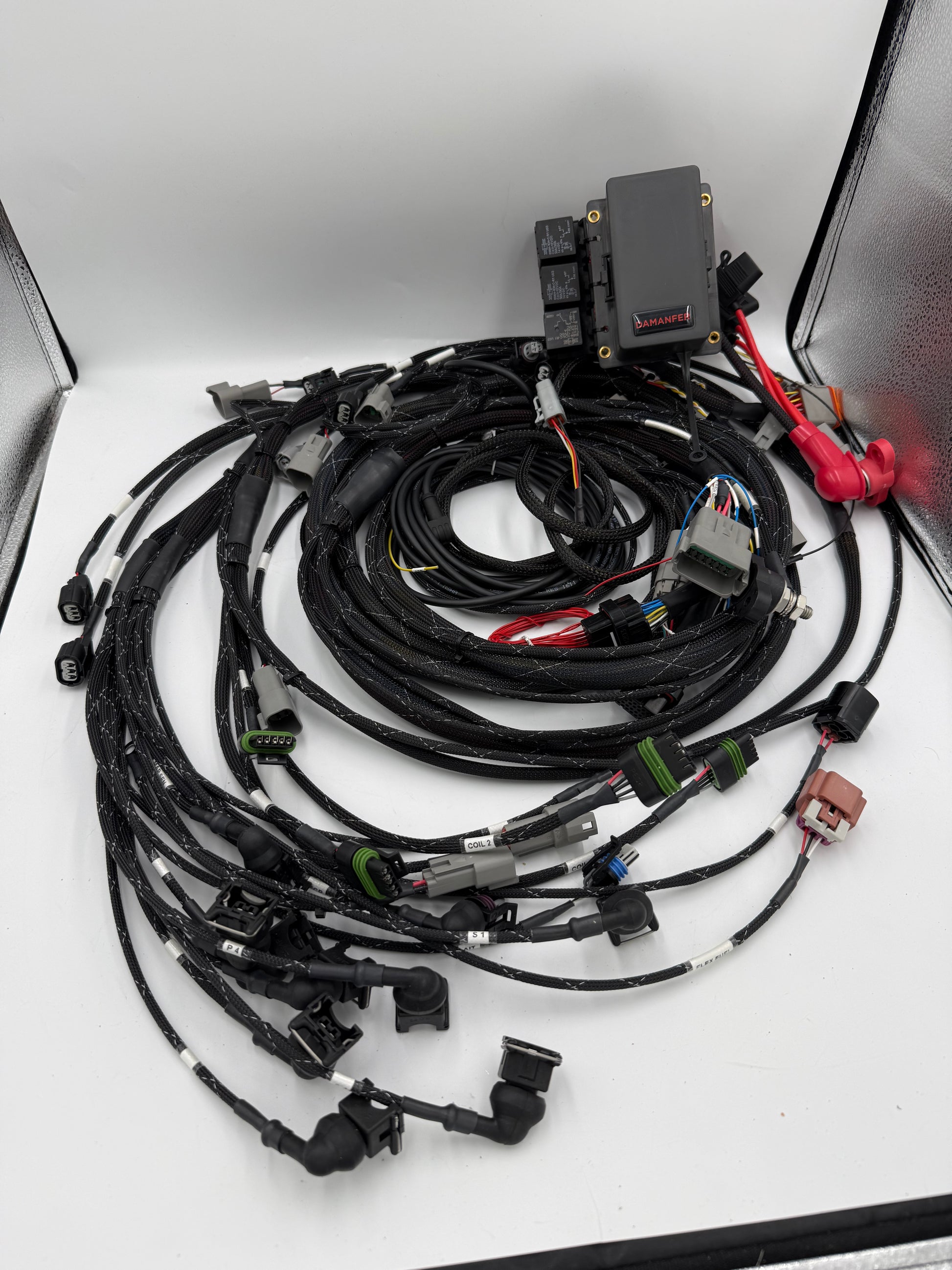

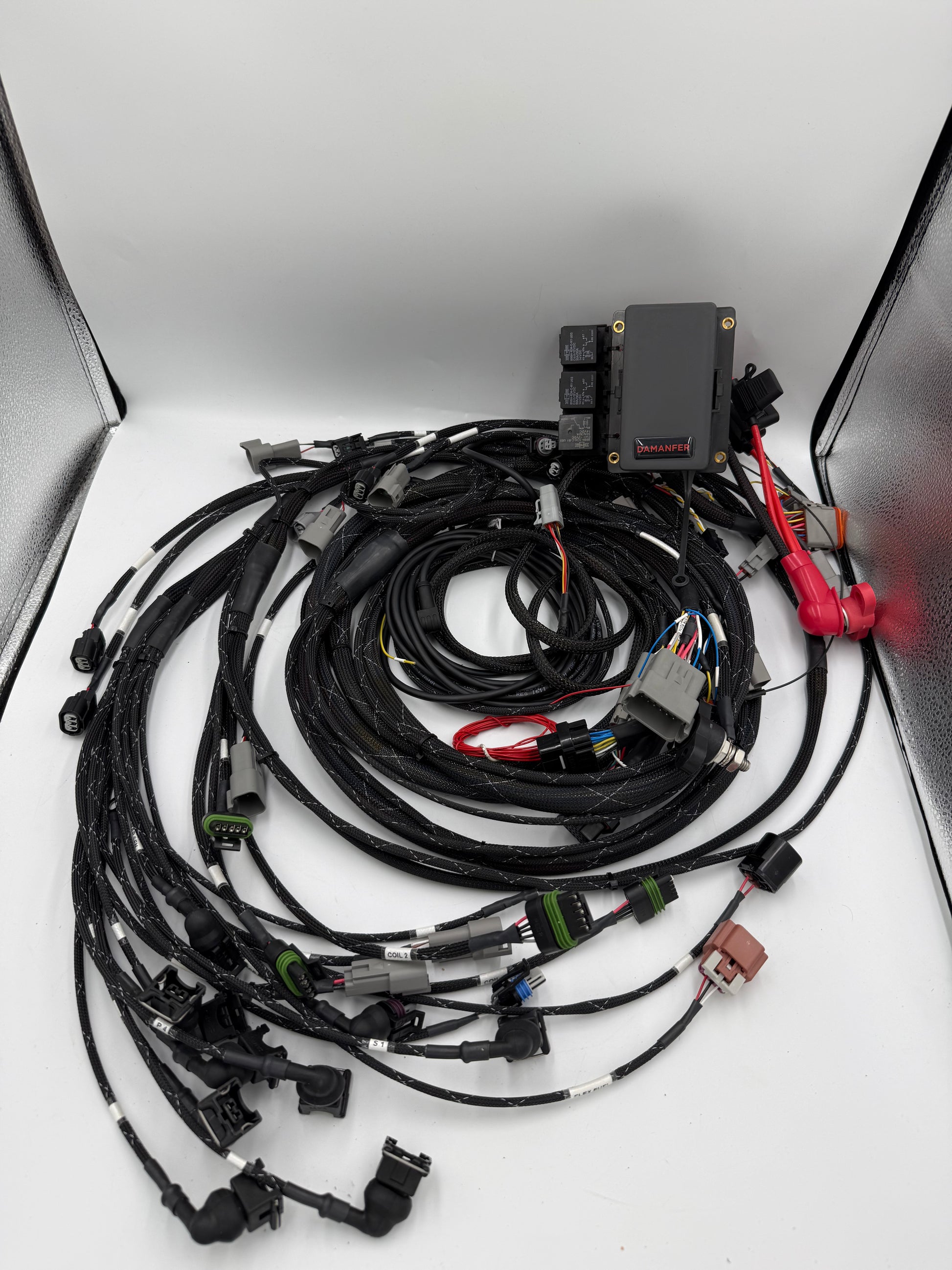

• DAMANFER MR2 K series Harness
• Fueltech FT550
• Fueltech Complete Nano Wideband

Please select injectors and coils used on set up to have correct connectors on harness.

We will get in contact with you for details on K20 or K24 crank sensor used.
