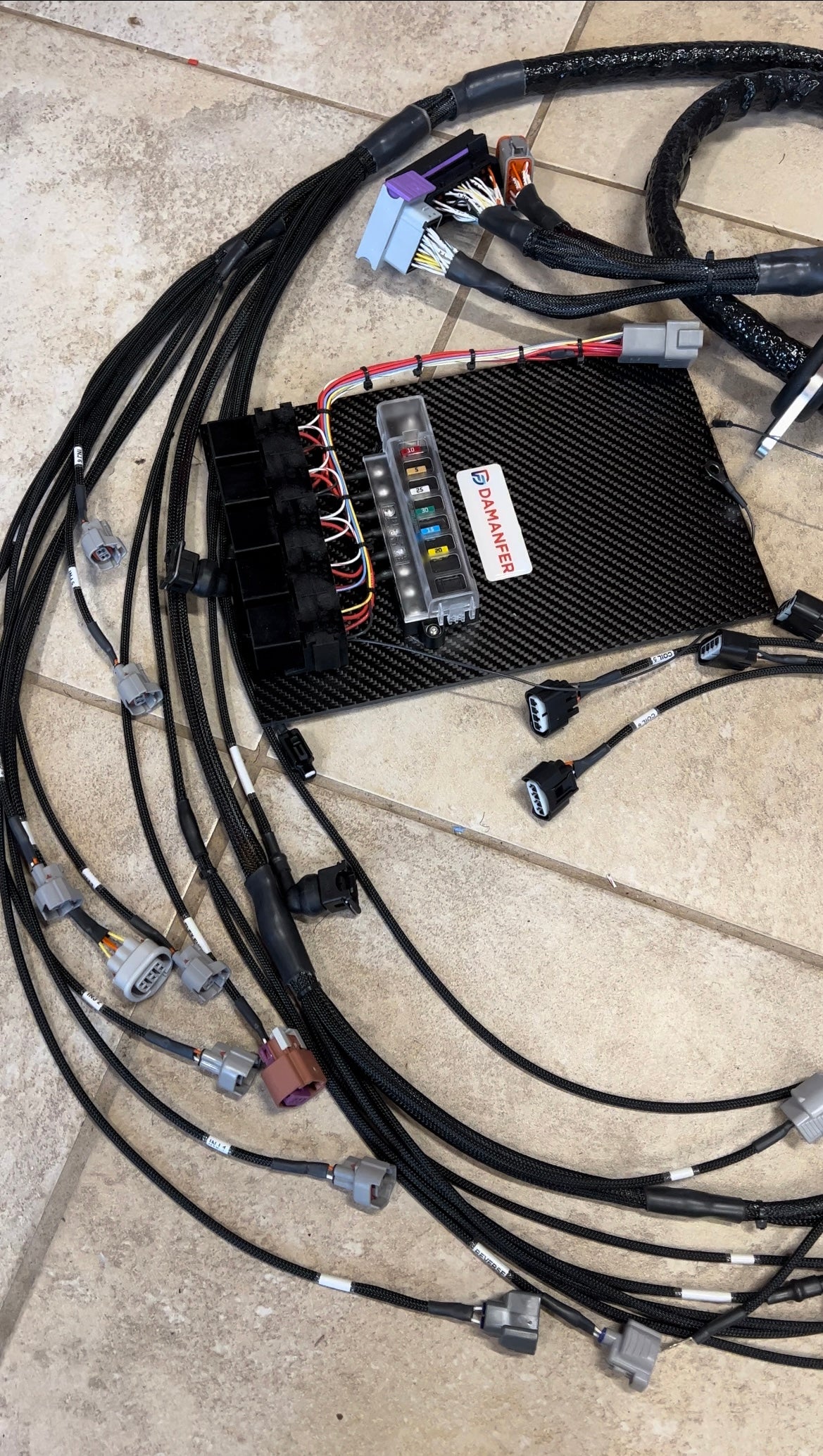

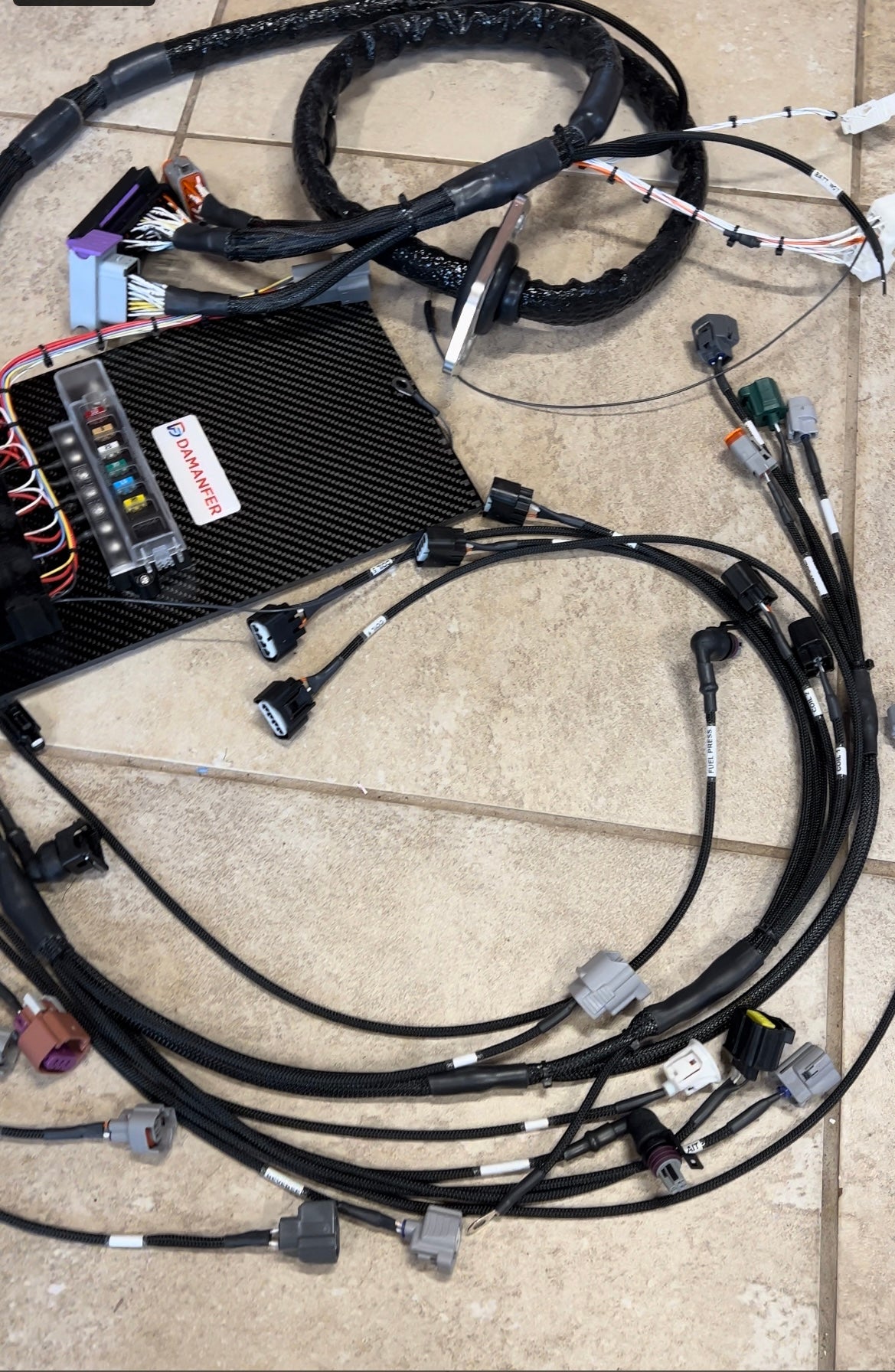

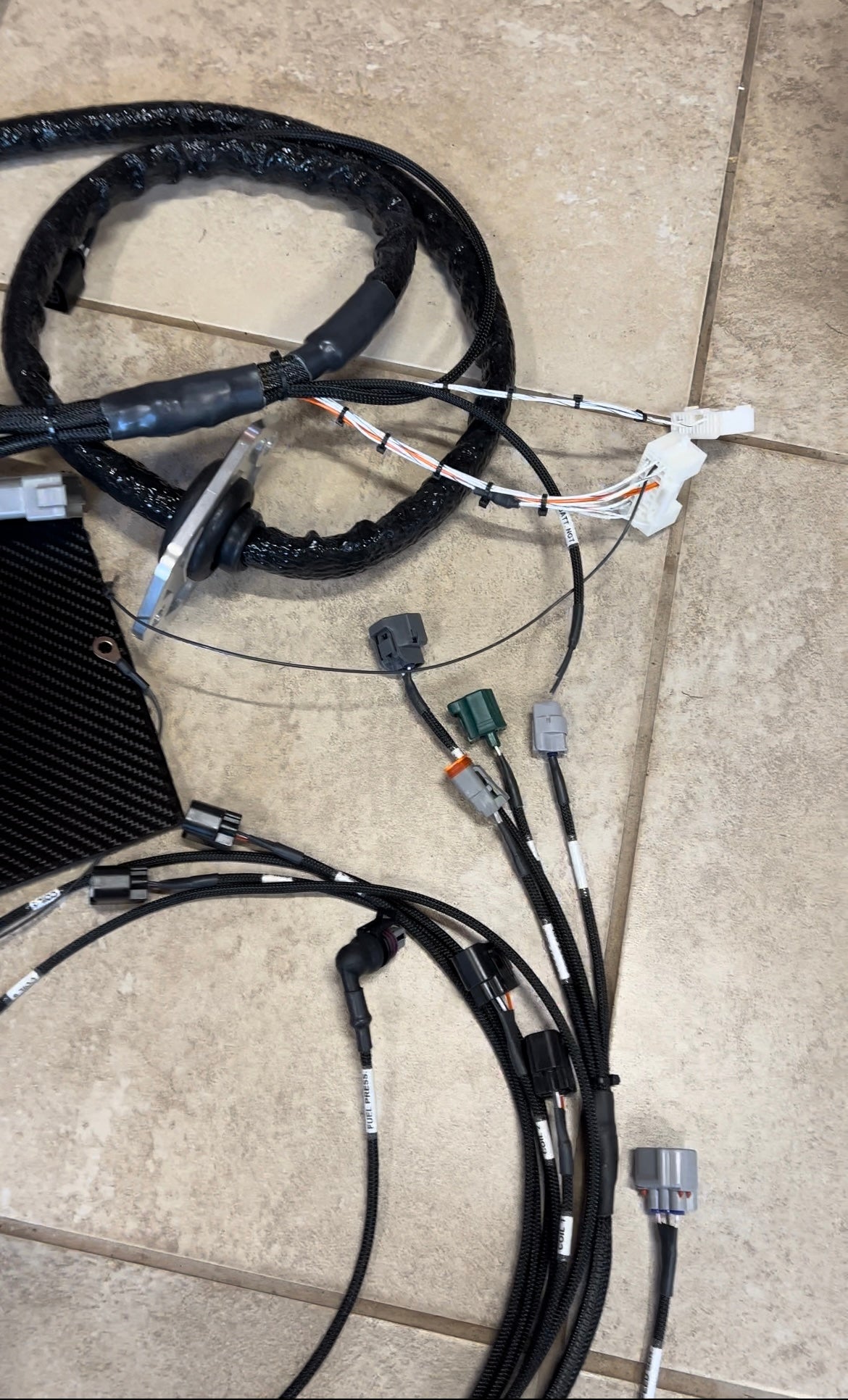

Plug and Play MK4 Supra / SC300 LHD 1JZ/2JZ MT Harness + ECUMaster EMU Black COMBO!

MK4 Supra / SC300 LHD 1JZ/2JZ MT Engine Harness + EMU Black + 02 Sensor COMBO!

Compatible with LHD, this MK4 Supra / SC300 1JZ/2JZ EMU Black engine harness meets the needs of most.

Built with Mil-Spec ETFE Insulated Electric Wire (Tefzel wire) we strive to offer top quality harnesses.

Inputs:

1. TPS
2. Engine Coolant Temp. (ECT)
3. Oil Pressure
4. Fuel Pressure
5. Flex Fuel
6. AIT

7. RW Speed

8. A/C Switch
9. Knock Sensor 1 (Bosch)
10. Kncok Sensor 2 (Bosch)

Outputs besides injectors and coils:

1. Boost Solenoid
2. A/C Compressor
3. Radiator Fan #1
4. Radiator Fan #2
5. Fuel Pump

Included with wiring harness is a fuse and relay box with 5 fuses and relays as follows:

1. ECU
2. Injectors
3. Coils
4. A/C
5. Starter

Harness is set up to be plug and play to stock body connectors, battery ground and 12v are needed to be wired from battery.

That is all it takes to get you ready for tuning.

Please select injectors and coils used on set up to have correct connectors on harness.
