Plug and Play MK4 Supra LHD 1JZ/2JZ MT Harness + Haltech Nexus S3 + 02 Sensor COMBO!

MK4 Supra LHD 1JZ/2JZ MT Engine Harness + Haltech Nexus S3 + 02 Sensor COMBO!

Compatible with LHD, this MK4 Supra 1JZ/2JZ Nexus S3 engine harness meets the needs of most.

Built with Mil-Spec ETFE Insulated Electric Wire (Tefzel wire) we strive to offer top quality harnesses.

Inputs:

1. TPS
2. Engine Coolant Temp. (ECT)
3. Oil Pressure
4. Fuel Pressure
5. Flex Fuel
6. AIT

7. RW Speed

8. A/C Switch

Outputs besides injectors and coils:

1. Boost Solenoid
2. A/C Compressor
3. Radiator Fan
4. Fuel Pump #1
5. Fuel Pump #2

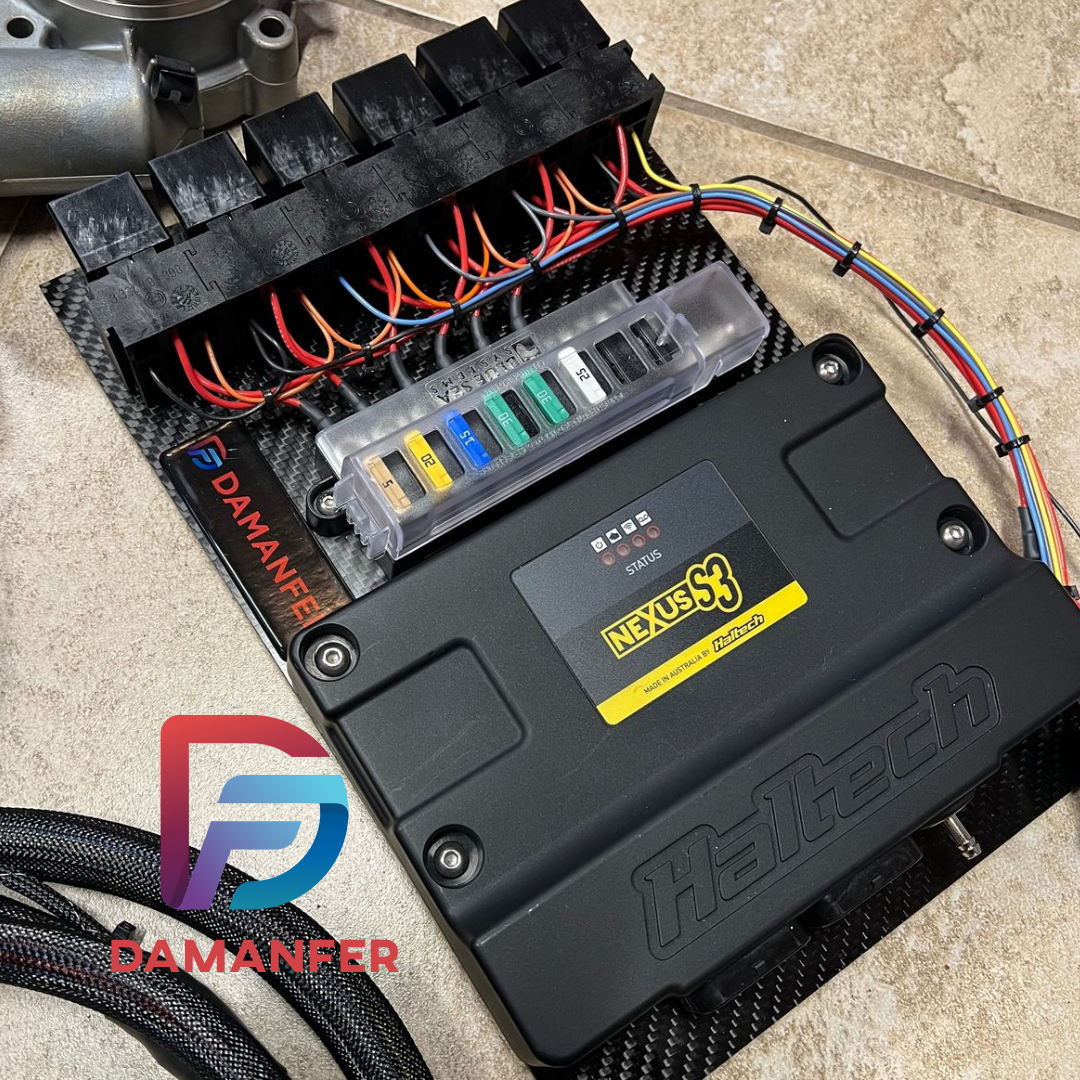

Included with wiring harness is a fuse and relay panel with 5 fuses and relays as follows:

1. ECU
2. Injectors
3. Coils
4. A/C
5. Starter

Harness is set up to be plug and play to stock body connectors, battery ground and 12v are needed to be wired from battery. Fuse and relay panel sit on passenger side where OEM ecu would be.

That is all it takes to get you ready for tuning.

Combo includes:

1. Damanfer MK4 LHD Plug and Play Engine Harness
2. Haltech Nexus S3
3. Bosch 02 Sensor
4. Damanfer CNC Billet Firewall Plate

Option available to add DBW wiring at no extra cost.

Please select injectors and coils used on set up to have correct connectors on harness.
