Damanfer

WB-O2 NANO

WB-O2 NANO

Regular price $219.00 USD
Regular price Sale price $219.00 USD
Sale Sold out
Shipping calculated at checkout.
Accessories

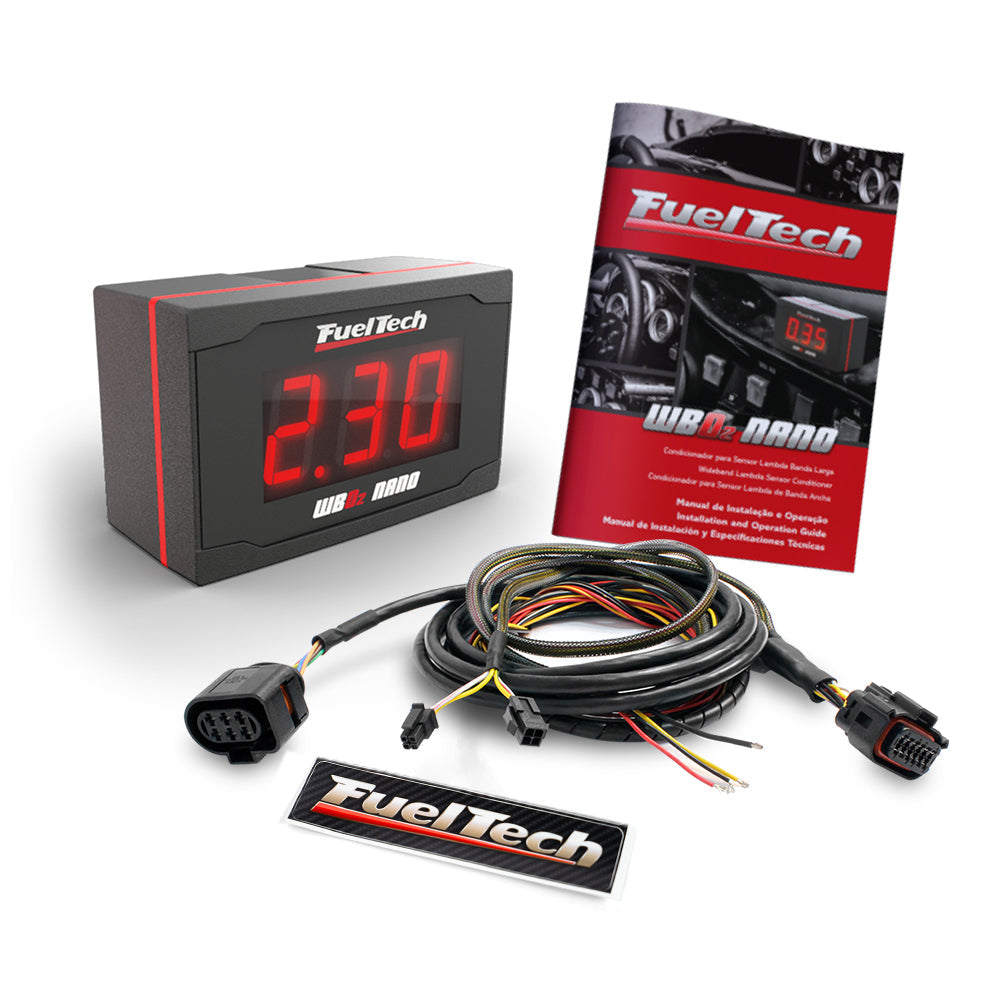

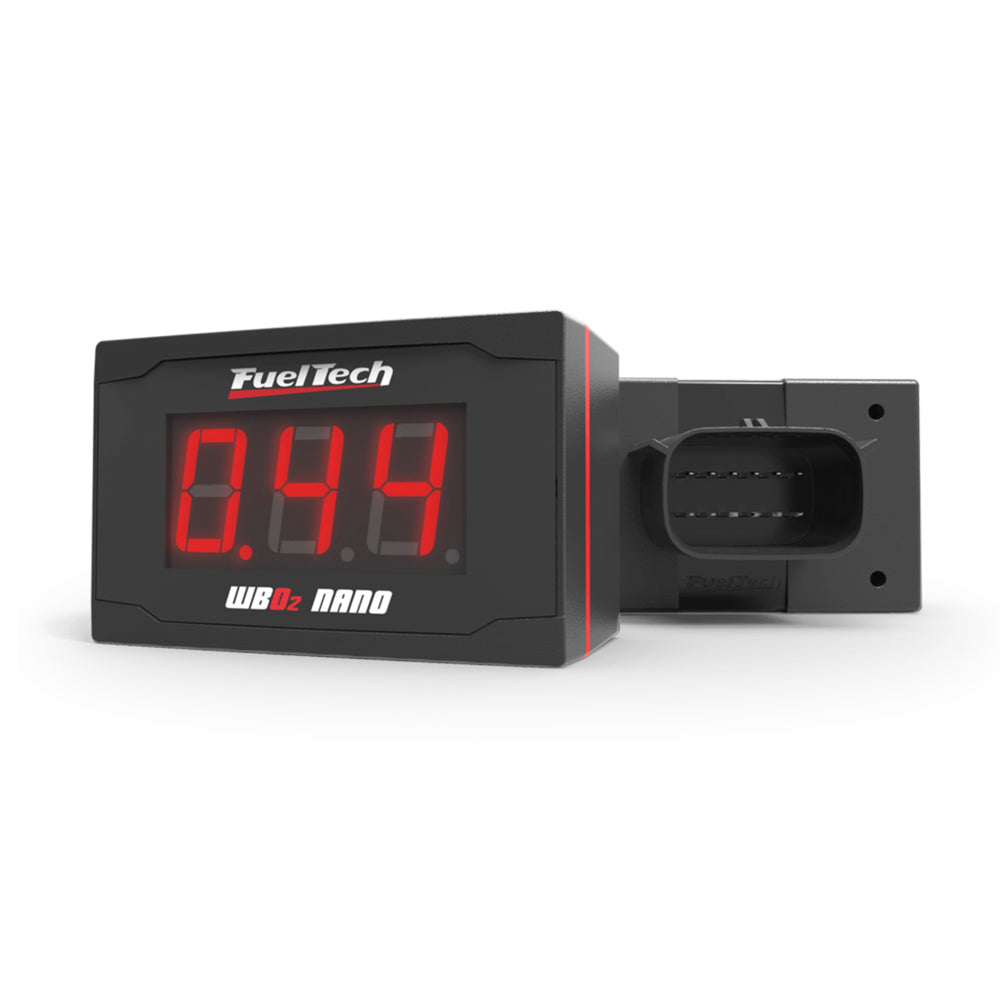

Wideband O2 sensor display and conditioner for Bosch LSU 4.2 sensors.

The WB-O2 Nano features an extended reading scale down to 0.35 λ*compact size and CAN communication with our Power FT line ECUs. This is very useful when using O2 sensor per cylinder.


The O2 sensor reading is sent to via CAN to the ECU and recorded in the internal datalogger, without using any analog input.

• Waterproof (IP67)
• Extended reading scale 0.35λ to 9.99λ, 5.15 to 147 Gas A/FR, 2.24 to 64 Alcohol A/FR*

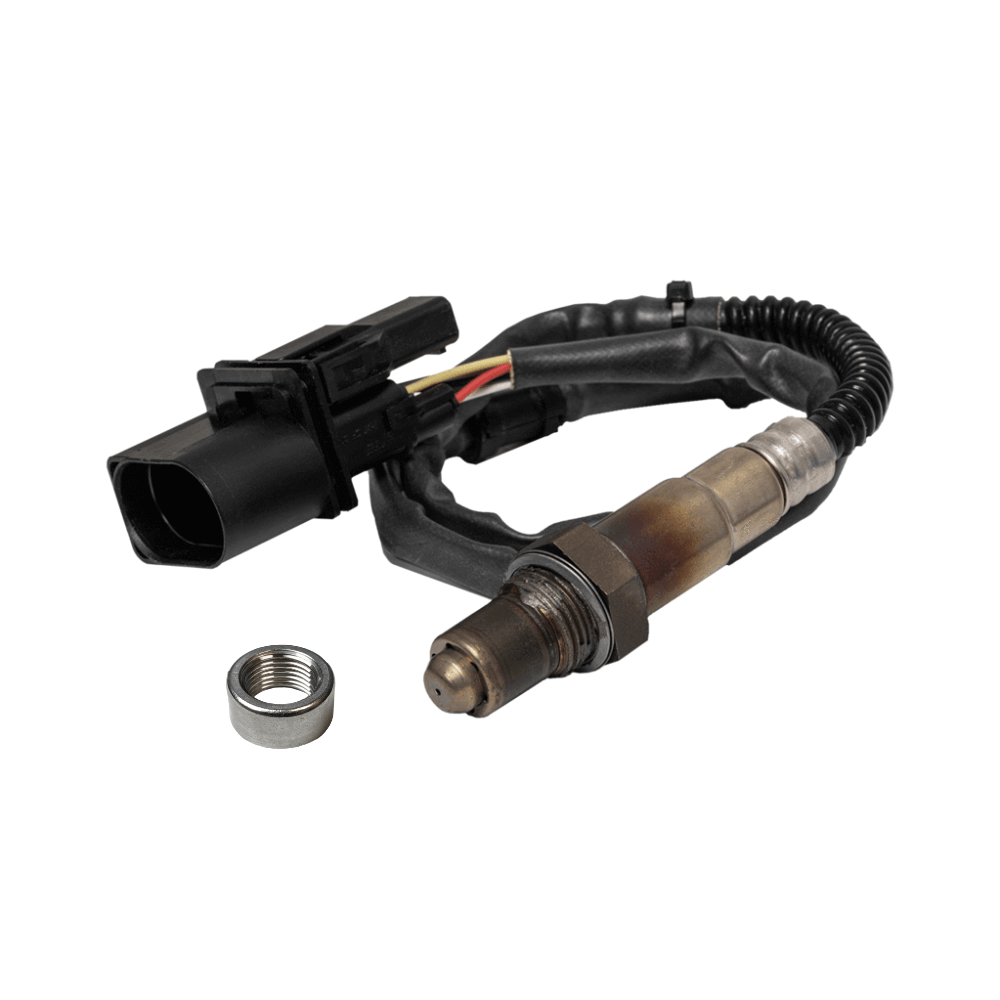

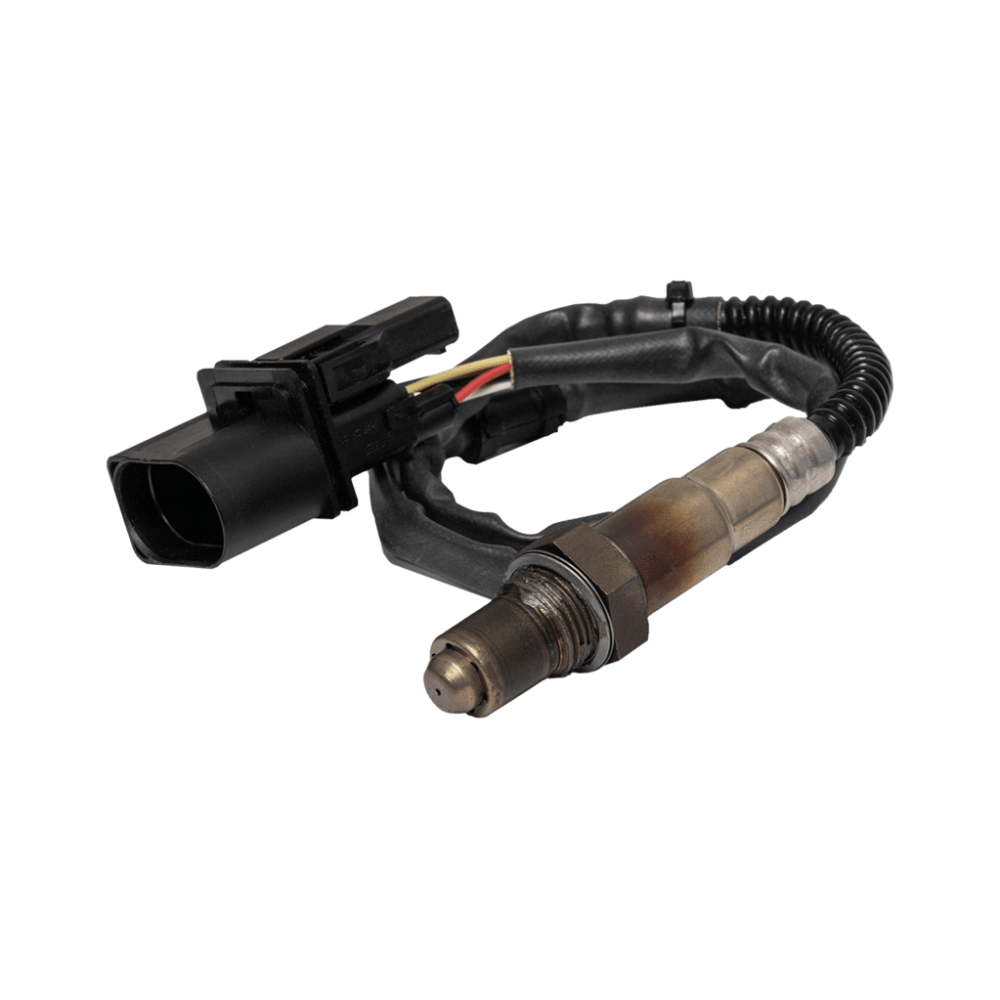

• Wideband O2 sensor display and conditioner for Bosch LSU 4.2 sensors
• CAN communication with FT600 / FT550 / FT500 / FT500LITE / FT450: sends the O2 reading via CAN to the ECU, freeing up the analog inputs
• Allows several conditioners connected to the CAN network, for use with individual cylinder reading or bank reading
• Easy viewing and small size
• 0-5V analog output for connection with stand alone ECU or external datalogger (WB-O2 Datalogger, PRO24 Datalogger)
Bosch amplification and control circuit
• Update via CAN (FT500 connection required)
• WB-O2 Nano has replaced the previous WB-O2 Meter Slim

*The reading scale can be higher or lower than 0.35 λ, depending on sensor manufacturing characteristics.
